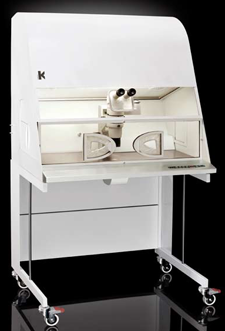

L323 IVF

Excellent for the aspiration room



Exposure of human oocytes and/or embryos / blastocysts to room air and to room temperature can drastically affect their viability. The L323 IVF Incu-Chamber is developed as a semi-closed system allowing you to perform oocyte screening, fertilization, cleavage check and embryo/blastocyst transfer in an incubator like environment.



The L323 IVF Incu-Chamber Standard Characteristics:

• Constant temperature at 37°C on the working procedure surface
• Warmed re-circulating air at 37°C
• Controlled CO2 air circulation in the procedure area (range 2-10%)
• Controlled O2 air circulation in the procedure area (range 2-20%)
• Up to 60 % Air Humidity in the procedure area
• Re-circulated air is HEPA, V.O.C filtered and passes through a UV-Light pressure chamber to ensure that the air is decontaminated.



Technical specifications:	L323 IVF
Overall dimensions (WxDxH)	940x830x1720 mm/19x33x68
Workspace/tabletop (WxD)	940x500 mm/19x20
Air flow	0,40 m/s
Table height	835 mm/33
